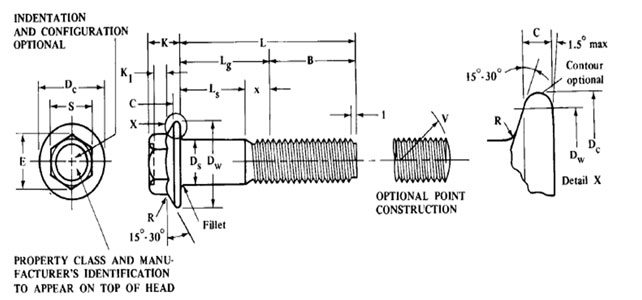

| Nominal Screw Diameter, D and Thread Pitch | Body Diameter Ds, | Width Across Flats, S | Width Across Corners, E | Flange Diameter, Dc | Bearing Circle Dia, Dw | Flange Edge Thickness, C | Head Height, K | Wrenching Height, K1 | Fillet Radius, R | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Max | Min | Max | Min | Min | Max | Min | Max | |
| M10 x 1.5 | 10.00 | 9.78 | 15.00 | 14.57 | 17.32 | 16.32 | 22.3 | 19.6 | 1.5 | 8.6 | 3.70 | 0.6 |
| M12 x 1.75 | 12.00 | 11.73 | 18.00 | 17.57 | 20.78 | 19.68 | 26.6 | 23.8 | 1.8 | 10.4 | 4.60 | 0.7 |
| M14 x 2 | 14.00 | 13.73 | 21.00 | 20.48 | 24.25 | 22.94 | 30.5 | 27.6 | 2.1 | 12.4 | 5.50 | 0.9 |
| M16 x 2 | 16.00 | 15.73 | 24.00 | 23.16 | 27.71 | 25.94 | 35.0 | 31.9 | 2.4 | 14.1 | 6.20 | 1.0 |
| M20 x 2.5 | 20.00 | 19.67 | 30.00 | 29.16 | 34.64 | 32.66 | 43.0 | 39.9 | 3.0 | 17.7 | 7.90 | 1.2 |
