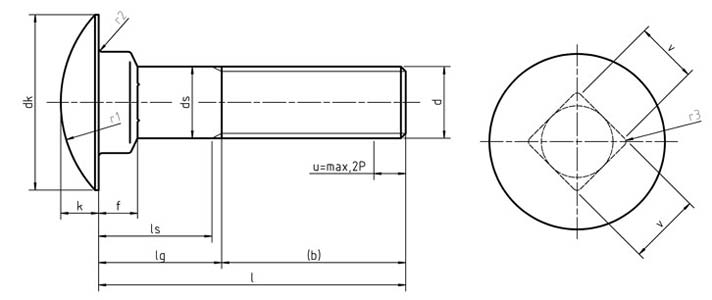

| Thread d | p | b | dk | ds | f | k | r1 | r2 | r3 | v | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| l ? 125mm | 125 < l ? 200mm | l > 200mm | max | min | max | min | max | min | max | min | approx | max | max | max | min | ||
| M5 | 0.8 | 16 | 22 | 13.55 | 12.45 | 5 | 4.52 | 4.1 | 2.9 | 3.3 | 2.7 | 10.7 | 0.5 | 0.75 | 5.48 | 4.52 | |
| M6 | 1 | 18 | 24 | 16.55 | 15.45 | 6 | 5.52 | 4.6 | 3.4 | 3.88 | 3.12 | 12.6 | 0.5 | 0.9 | 6.48 | 5.52 | |
| M8 | 1.25 | 22 | 28 | 20.65 | 19.35 | 8 | 7.42 | 5.6 | 4.4 | 4.88 | 4.12 | 16 | 0.5 | 1.2 | 8.58 | 7.42 | |
| M10 | 1.5 | 26 | 32 | 24.65 | 23.35 | 10 | 9.42 | 6.6 | 5.4 | 5.38 | 4.62 | 19.2 | 0.5 | 1.5 | 10.58 | 9.42 | |
| M12 | 1.75 | 30 | 36 | 30.65 | 29.35 | 12 | 11.3 | 8.75 | 7.25 | 6.95 | 6.05 | 24.1 | 1 | 1.8 | 12.7 | 11.3 | |
| M16 | 2 | 38 | 44 | 38.8 | 37.2 | 16 | 15.3 | 12.9 | 11.1 | 8.95 | 8.05 | 29.3 | 1 | 2.4 | 16.7 | 15.3 | |
| M20 | 2.5 | 46 | 52 | 46.8 | 45.2 | 20 | 19.16 | 15.9 | 14.1 | 11.05 | 9.95 | 33.9 | 1 | 3 | 20.84 | 19.16 | |
Notes : Non preferred size, not recommended for new design due to limited availability
