UNI 5588

UNI 5588

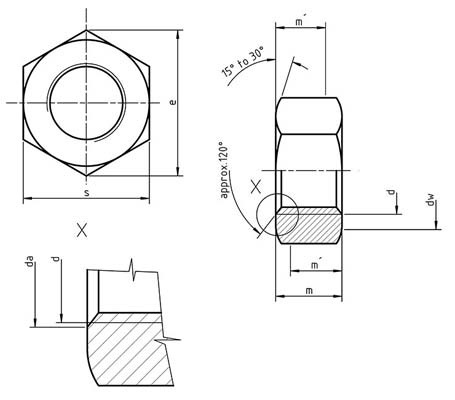

Dimensions for UNI 5588 Hexagon Nuts

Thread d p c da dw e m mw s
preferred threads max min max min min min max min min nominal = max min
M1.6 0.35 0.20 0.10 1.84 1.60 2.40 3.41 1.30 1.05 0.80 3.20 3.02
M2 0.4 0.20 0.10 2.30 2.00 3.10 4.32 1.60 1.35 1.10 4.00 3.82
M2.5 0.45 0.30 0.10 2.90 2.50 4.10 5.45 2.00 1.75 1.40 5.00 4.82
M3 0.5 0.40 0.15 3.45 3.00 4.60 6.01 2.40 2.15 1.70 5.50 5.32
M4 0.7 0.40 0.15 4.60 4.00 5.90 7.66 3.20 2.90 2.30 7.00 6.78
M5 0.8 0.50 0.15 5.75 5.00 6.90 8.79 4.70 4.40 3.50 8.00 7.78
M6 1 0.50 0.15 6.75 6.00 8.90 11.05 5.20 4.90 3.90 10.0 9.78
M8 1.25 0.60 0.15 8.75 8.00 11.60 14.38 6.80 6.44 5.20 13.00 12.73
M10 1.5 0.60 0.15 10.80 10.00 14.60 17.77 8.40 8.04 6.40 16.00 15.73
M12 1.75 0.60 0.15 13.00 12.00 16.60 20.03 10.80 10.37 8.30 18.00 17.73
M16 2 0.80 0.20 17.30 16.00 22.50 26.75 14.80 14.10 11.30 24.00 23.67
M20 2.5 0.80 0.20 21.60 20.00 27.70 32.95 18.00 16.90 13.50 30.00 29.16
M24 3 0.80 0.20 25.90 24.00 33.30 39.55 21.50 20.20 16.20 36.00 35.00
M30 3.5 0.80 0.20 32.40 30.00 42.80 50.85 25.60 24.30 19.40 46.00 45.00
M36 4 0.80 0.20 38.90 36.00 51.10 60.79 31.00 29.40 23.50 55.00 53.80
M42 4.5 1.00 0.30 45.40 42.00 60.00 71.30 34.00 32.40 25.90 65.00 63.10
M48 5 1.00 0.30 51.80 48.00 69.50 82.60 38.00 36.40 29.10 75.00 73.10
M56 5.5 1.00 0.30 60.50 56.00 78.70 93.56 45.00 43.40 34.70 85.00 82.80
M64 6 1.00 0.30 69.10 64.00 88.20 104.86 51.00 49.10 39.30 95.00 92.80

Notes : Non preferred size, not recommended for new design due to limited availability

Thread d p c da dw e m mw s
non-preferred threads max min max min min min max min min nominal = max min
M3.5 0.6 0.40 0.15 4.00 3.50 5.00 6.58 2.80 2.55 2.00 6.00 5.82
M14 2 0.60 0.15 15.10 14.00 19.60 23.36 12.80 12.10 9.70 21.00 20.67
M18 2.5 0.80 0.20 19.50 18.00 24.90 29.56 15.80 15.10 12.10 27.00 26.16
M22 2.5 0.80 0.20 23.70 22.00 31.40 37.29 19.40 18.10 14.50 34.00 33.00
M27 3 0.80 0.20 29.10 27.00 38.00 45.20 23.80 22.50 18.00 41.00 40.00
M33 3.5 0.80 0.20 35.60 33.00 46.60 55.37 28.70 27.40 21.90 50.00 49.00
M39 4 1.00 0.30 42.10 39.00 55.90 66.44 33.40 31.80 25.40 60.00 58.80
M45 4.5 1.00 0.30 48.60 45.00 64.70 76.95 36.00 34.40 27.50 70.00 68.10
M52 5 1.00 0.30 56.20 52.00 74.20 88.25 42.00 40.40 32.30 80.00 78.10
M60 5.5 1.00 0.30 64.80 60.00 83.40 99.21 48.00 46.40 37.10 90.00 87.80

Notes : Non preferred size, not recommended for new design due to limited availability
