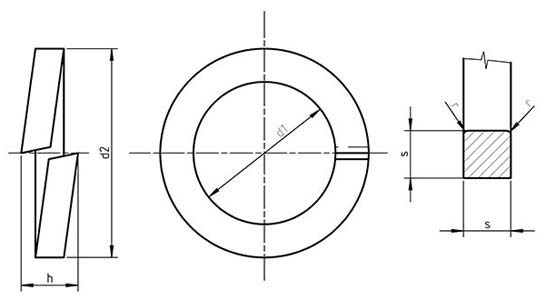

| Nominal | d1 | d2 | s | h | r | Mass (7,85 kg/dm3) per 1000units in kg | For thread size | |||
|---|---|---|---|---|---|---|---|---|---|---|
| min. | max. | max. | Limit | min. | max. | |||||
| 3 | 3.1 | 3.4 | 5.6 | 1 | ±0.1 | 2 | 2.36 | 0.2 | 0.105 | M3 |
| 3.5 | 3.6 | 3.9 | 6.1 | 1 | ±0.1 | 2 | 2.36 | 0.2 | 0.114 | M3.5 |
| 4 | 4.1 | 4.4 | 7 | 1.2 | ±0.1 | 2.4 | 2.83 | 0.2 | 0.195 | M4 |
| 5 | 5.1 | 5.4 | 8.8 | 1.6 | ±0.1 | 3.2 | 3.78 | 0.2 | 0.37 | M5 |
| 6 | 6.1 | 6.5 | 9.9 | 1.6 | ±0.1 | 3.2 | 3.78 | 0.3 | 0.425 | M6 |
| 8 | 8.1 | 8.5 | 12.7 | 2 | ±0.1 | 4 | 4.72 | 0.5 | 1.05 | M8 |
| 10 | 10.2 | 10.7 | 16 | 2.5 | ±0.15 | 5 | 5.9 | 0.8 | 1.96 | M10 |
| 12 | 12.2 | 12.7 | 18 | 2.5 | ±0.15 | 5 | 5.9 | 0.8 | 2.28 | M12 |
| 14 | 14.2 | 14.7 | 21.1 | 3 | ±0.2 | 6 | 7.1 | 1 | 3.8 | M14 |
| 16 | 16.2 | 17 | 24.4 | 3.5 | ±0.2 | 7 | 8.25 | 1 | 5.94 | M16 |
| 18 | 18.2 | 19 | 26.4 | 3.5 | ±0.2 | 7 | 8.25 | 1 | 6.6 | M18 |
| 20 | 20.2 | 21.2 | 30.6 | 4.5 | ±0.2 | 9 | 10.6 | 1 | 12.3 | M20 |
| 22 | 22.5 | 23.5 | 32.9 | 4.5 | ±0.2 | 9 | 10.6 | 1 | 13.6 | M22 |
| 24 | 24.5 | 25.5 | 35.9 | 5 | ±0.2 | 10 | 11.8 | 1.6 | 18.1 | M24 |
| 27 | 27.5 | 28.5 | 38.9 | 5 | ±0.2 | 10 | 11.8 | 1.6 | 20.6 | M27 |
| 30 | 30.5 | 31.7 | 44.1 | 6 | ±0.2 | 12 | 14.2 | 1.6 | 32 | M30 |
| 33 | 33.5 | 34.7 | 47.1 | 6 | ±0.2 | 12 | 14.2 | 1.6 | 35 | M33 |
| 36 | 36.5 | 37.7 | 52.2 | 7 | ±0.25 | 14 | 16.5 | 1.6 | 52.5 | M36 |
| 42 | 42.5 | 43.7 | 60.2 | 8 | ±0.25 | 16 | 18.9 | 2 | 80 | M42 |
| 48 | 49 | 50.5 | 67 | 8 | ±0.25 | 16 | 18.9 | 2 | 90 | M48 |
