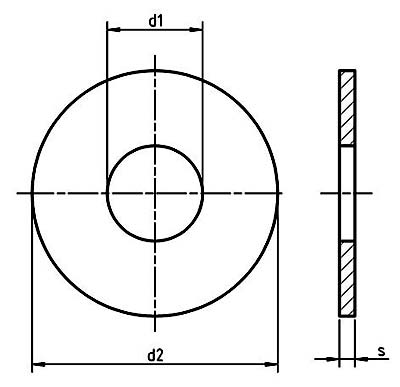

| d1 H11 | For Thread | d2 | s | weight kg/1000pcs |
|---|---|---|---|---|
| 3 | M3 | 6 | 0.8 | 0.13 |
| 4 | M4 | 8 | 0.8 | 0.23 |
| 5 | M5 | 10 | 0.8 | 0.36 |
| 6 | M6 | 12 | 1.6 | 1.05 |
| 7 | M7 | 14 | 1.6 | 1.42 |
| 8 | M8 | 16 | 2 | 2.22 |
| 10 | M10 | 20 | 2.5 | 4.56 |
| 12 | M12 | 25 | 3 | 8.99 |
| 13 | M13 | 25 | 3 | 8.36 |
| 14 | M14 | 28 | 3 | 10.8 |
| 16 | M16 | 28 | 3 | 9.68 |
| 18 | M18 | 30 | 4 | 13.8 |
| 20 | M20 | 32 | 4 | 15 |
| 22 | M22 | 34 | 4 | 16.2 |
| 23 | M23 | 36 | 4 | 18.5 |
| 24 | M24 | 38 | 4 | 21.4 |
| 25 | M25 | 40 | 4 | 23.6 |
| 26 | M26 | 40 | 5 | 28.5 |
| 27 | M27 | 40 | 5 | 26.5 |
| 28 | M28 | 42 | 5 | 29.7 |
| 30 | M30 | 45 | 5 | 34.2 |
| 32 | M32 | 50 | 5 | 44.8 |
| 33 | M33 | 50 | 5 | 43.3 |
| 35 | M35 | 52 | 6 | 52.8 |
| 36 | M36 | 52 | 6 | 49.5 |
| 40 | M40 | 58 | 6 | 63.7 |
| 45 | M45 | 62 | 7 | 76.8 |
| 50 | M50 | 68 | 8 | 101 |
| 55 | M55 | 75 | 9 | 141 |
| 60 | M60 | 80 | 9 | 151 |
| 65 | M65 | 90 | 9 | 211 |
| 70 | M70 | 95 | 10 | 250 |
| 75 | M75 | 100 | 10 | 265 |
| 80 | M80 | 110 | 12 | 413 |
| 85 | M85 | 110 | 12 | 371 |
| 90 | M90 | 115 | 12 | 370 |
| 95 | M95 | 120 | 12 | 387 |
| 100 | M100 | 125 | 14 | 472 |
