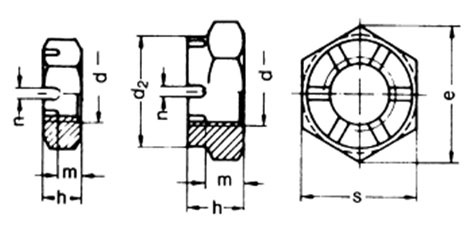

| d mm | d2 max | H | n min | s | m max | cotter |
|---|---|---|---|---|---|---|
| M 6 | – | 6 | 2 | 10 | 3.5 | 1.6 x 1.4 |
| M 8 | – | 8 | 2.5 | 13 | 4.5 | 2 x 16 |
| M 10 | – | 9 | 2.8 | 17 | 5 | 2.5 x 20 |
| M 12 | 17 | 10 | 3.5 | 19 | 6 | 3.2 x 22 |
| M 14 | 19 | 11 | 3.5 | 22 | 7 | 3.2 x 25 |
| M 16 | 22 | 12 | 4.5 | 24 | 7 | 4 x 28 |
| M 18 | 25 | 13 | 4.5 | 27 | 8 | 4 x 32 |
| M 20 | 28 | 13 | 4.5 | 30 | 8 | 4 x 36 |
| M 22 | 30 | 15 | 5.5 | 32 | 9 | 5 x 36 |
| M 24 | 34 | 15 | 5.5 | 36 | 9 | 5 x 40 |
| M 26 | 38 | 30 | 5.5 | 41 | 22 | 5 x 50 |
| M 27 | 38 | 17 | 5.5 | 41 | 11 | 5 x 45 |
| M 28 | 38 | 30 | 5.5 | 41 | 22 | 5 x 50 |
| M 30 | 42 | 18 | 7 | 46 | 11 | 6.3 x 50 |
| M 32 | 46 | 20 | 7 | 50 | 13 | 6.3 x 60 |
| M 33 | 46 | 20 | 7 | 50 | 13 | 6.3 x 56 |
| M 35 | 50 | 20 | 7 | 55 | 13 | 6.3 x 65 |
| M 38 | 50 | 20 | 7 | 55 | 13 | 6.3 x 63 |
| M 39 | 55 | 22 | 7 | 60 | 13 | 6.3 x 71 |
| M 40 | 55 | 22 | 7 | 60 | 13 | 6 x 70 |
| M 42 | 58 | 23 | 9 | 65 | 14 | 6 x 71 |
| M 45 | 62 | 25 | 9 | 70 | 16 | 8 x 80 |
| M 48 | 65 | 25 | 9 | 75 | 16 | 8 x 80 |
| M 50 | 65 | 27 | 9 | 75 | 18 | 8 x 80 |
| M 52 | 70 | 27 | 9 | 80 | 18 | 8 x 90 |
