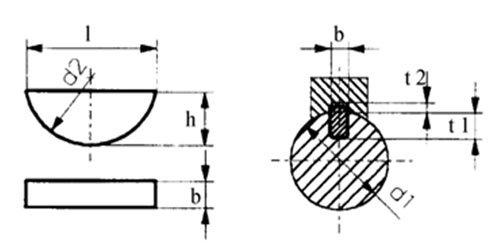

| Dimensions | H | d2 | l | for shafts d/d1 | for shafts d/d1 |
|---|---|---|---|---|---|
| 2 | 2.6 | 7 | 6.76 | 6 – 8 | 10 – 12 |
| 2 | 3.7 | 10 | 9.66 | 6 – 8 | 10 – 12 |
| 2.5 | 3.7 | 10 | 9.66 | 8 – 10 | 12 – 17 |
| 3 | 3.7 | 10 | 9.66 | 8 – 10 | 12 – 17 |
| 3 | 5 | 13 | 12.65 | 8 – 10 | 12 – 17 |
| 3 | 6.5 | 16 | 15.72 | – | 12 – 17 |
| 4 | 5 | 13 | 12.65 | 10 – 12 | 17 – 22 |
| 4 | 6.5 | 16 | – | 10 – 12 | 17 – 22 |
| 4 | 7.5 | 19 | – | – | 17 – 22 |
| 5 | 6.5 | 16 | – | 12 – 17 | 22 – 30 |
| 5 | 7.5 | 19 | – | 12 – 17 | 22 – 30 |
| 5 | 8 | 22 | – | – | 22 – 30 |
| 6 | 7.5 | 19 | – | 17-22 | 30 – 38 |
| 6 | 9 | 22 | – | 17-22 | 30 – 38 |
| 6 | 11 | 28 | 27.35 | – | 30 – 38 |
| 8 | 9 | 22 | 21.63 | 22-30 | > 38 |
| 8 | 11 | 28 | 27.35 | 22-30 | > 38 |
| 8 | 13 | 32 | 31.43 | – | > 38 |
| 10 | 11 | 28 | 27.35 | 30-38 | > 38 |
| 10 | 13 | 32 | 31.43 | 30-38 | > 38 |
| 10 | 16 | 45 | 43.08 | – | > 38 |
