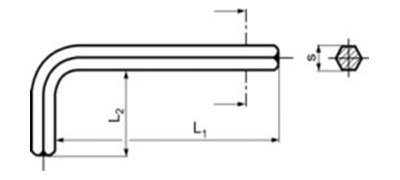

| Key Size | For DIN 912 | For DIN 913 – 916 | For DIN 7984 | For DIN 7991 | L1 | L2 |
|---|---|---|---|---|---|---|
| 0.9 | M 2 – M 2.3 | 32 | 10 | |||
| 1 | – | – | ||||
| 1.3 | M 1.4 | M 2.5 – M 2.6 | 40 | 12 | ||
| 1.5 | M 1.6 – M 2 | M 3 | 45 | 14 | ||
| 2 | M 2.5 | M 4 | M 3 | M 3 | 50 | 16 |
| 2.5 | M 3 | M 5 | M 4 | M 4 | 56 | 18 |
| 3 | M 4 | M 6 | M 5 | M 5 | 63 | 20 |
| 3.5 | 67 | 23 | ||||
| 4 | M 5 | M 8 | M 6 | M 6 | 70 | 25 |
| 4.5 | 75 | 26 | ||||
| 5 | M 6 | M 10 | M 8 | M 8 | 80 | 28 |
| 5.5 | 85 | 30 | ||||
| 6 | M 8 | M 12 – M 14 | M 10 | 90 | 32 | |
| 7 | M 10 | 95 | 34 | |||
| 8 | M 10 | M 16 | M 12 | M 12 | 100 | 36 |
| 9 | 105 | 38 | ||||
| 10 | M 12 | M 18 – 20 | M 14 | M 14 | 112 | 40 |
| 11 | 118 | 43 | ||||
| 12 | M 14 – M 16 | M 22 – M 24 | M 16 – M 18 | M 16 | 125 | 45 |
| 13 | 133 | 50 | ||||
| 14 | M 18 | M 20 – M 22 | M 18 – M 20 | 140 | 56 | |
| 15 | 147 | 58 | ||||
| 16 | 154 | 60 | ||||
| 17 | M 20 – M 22 | M 24 | M 22 – M 24 | 160 | 63 | |
| 18 | 170 | 65 | ||||
| 19 | M 24 – M 27 | 180 | 70 | |||
| 20 | 187 | 73 | ||||
| 21 | 194 | 77 | ||||
| 22 | M 30 | 200 | 80 | |||
| 24 | 224 | 90 | ||||
| 25 | – | – | ||||
| 27 | M 36 | 250 | 100 | |||
| 30 | 280 | 112 | ||||
| 32 | 315 | 125 | ||||
| 36 | 355 | 140 | ||||
| 42 | 407 | 157 | ||||
| 46 | 444 | 166 |
