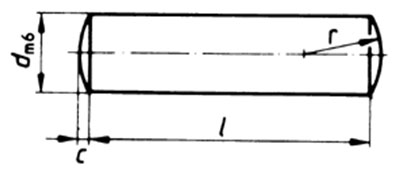

ISO 2338

iso-2338-dowel-pins

Dimensions of Dowel Pins

d m6rc maxTol. M6 (l = 2-10mm)Tol. M6 (l = 12-32mm)
0.80.80.12
110.15+0.3+0.5
1.21.20.18+0.3+0.5
1.51.60.23+0.3+0.5
220.3+0.3+0.5
2.52.50.4+0.3+0.5
330.45+0.3+0.5
440.6+0.3+0.5
550.75+0.3+0.5
660.9+0.3+0.5
881.2+0.3+0.5
10101.5+0.3+0.5
12121.8+0.3+0.5
14142+0.3+0.5
16162.5+0.3+0.5
20203.0+0.3+0.5
25254+0.3+0.5
30324.5+0.3+0.5
