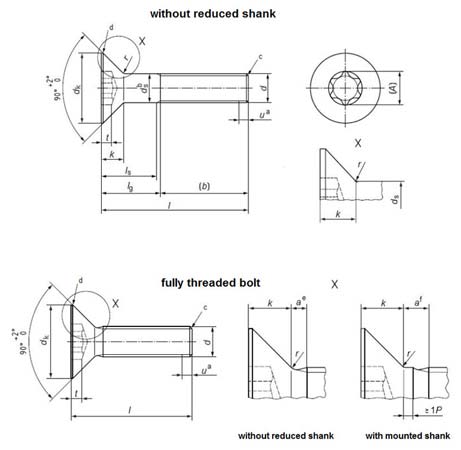

| thread d | b | dk max | ds max | k max | TORX | A | t max |
|---|---|---|---|---|---|---|---|
| M 3 | 18 | 6.57 | 3 | 2.2 | 10 | 2.8 | 1.18 |
| M 4 | 20 | 9.02 | 4 | 3.01 | 20 | 3.95 | 1.69 |
| M 5 | 22 | 10.9 | 5 | 3.5 | 25 | 4.5 | 1.89 |
| M 6 | 24 | 13.2 | 6 | 4.22 | 30 | 5.6 | 2.22 |
| M 8 | 28 | 17.9 | 8 | 5.69 | 45 | 7.93 | 2.99 |
| M 10 | 32 | 21.3 | 10 | 6.5 | 50 | 8.95 | 3.3 |
