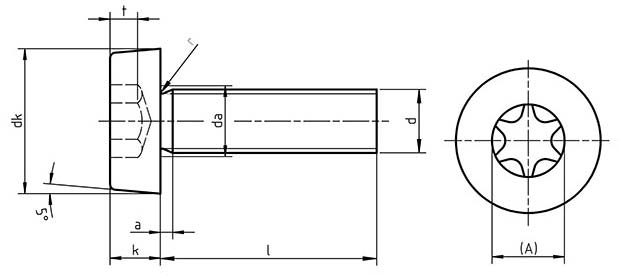

| thread D | a max | b min | dk max | da max | k max | TORX | A | t max. |
|---|---|---|---|---|---|---|---|---|
| M 2 | 0.8 | 25 | 3.62 | 2.6 | 1.55 | 6 | 1.75 | 0.84 |
| M 2.5 | 0.9 | 25 | 4.32 | 3.1 | 1.85 | 8 | 2.4 | 0.91 |
| M 3 | 1 | 25 | 5.32 | 3.6 | 2.4 | 10 | 2.8 | 1.27 |
| M 4 | 1.4 | 38 | 6.78 | 4.7 | 3.1 | 20 | 3.95 | 1.66 |
| M 5 | 1.6 | 38 | 8.28 | 5.7 | 3.65 | 25 | 4.5 | 1.91 |
| M 6 | 2 | 38 | 9.78 | 6.8 | 4.4 | 30 | 5.6 | 2.29 |
| M 8 | 2.5 | 38 | 12.73 | 9.2 | 5.8 | 45 | 7.95 | 3.05 |
| M 10 | 3 | 38 | 15.73 | 11.2 | 6.9 | 50 | 8.95 | 3.43 |
