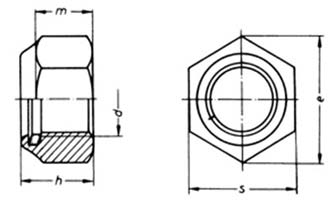

| d mm | s | e min. | m | h max. |
|---|---|---|---|---|
| M 3 | 5.5 | 6.08 | 2.7 | 3.9 |
| M 4 | 7 | 7.74 | 3.2 | 5 |
| M 5 | 8 | 8.87 | 3.5 | 5 |
| M 6 | 10 | 11.05 | 4.5 | 6 |
| M 8 | 13 | 14.38 | 6 | 6.76 |
| M 10 | 16 | 18.9 | 7 | 8.56 |
| M 12 | 18 | 21.1 | 9 | 10.23 |
| M 14 | 21 | 24.49 | 10 | 11.23 |
| M 16 | 24 | 26.75 | 11 | 12.42 |
| M 18 | 27 | 30.14 | 14 | 14.90 |
| M 20 | 30 | 33.53 | 15 | 17.80 |
| M 24 | 36 | 39.98 | 16 | 25.50 |
| M 27 | 41 | 45.63 | 19 | 27 |
| M 30 | 46 | 51.28 | 23 | 30 |
| M 36 | 55 | 61.31 | 28 | 36 |
