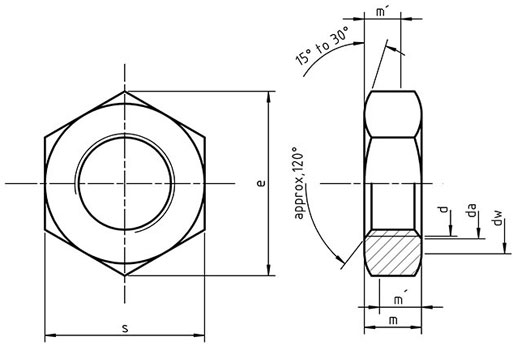

| Thread Size d | p | da | dw | e | m | m | s | weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| min | max | min | min | max | min | min | max | min | kg/1000pcs | |||||
| M8 | M8x1 | – | – | 1.25 | 8 | 8.75 | 11.3 | 14.38 | 5 | 4.7 | 3.8 | 13 | 12.73 | 4 |
| M10 | M10x1 | M10x1.25 | – | 1 | 10 | 10.8 | 15.3 | 18.9 | 6 | 5.7 | 4.6 | 17 | 16.73 | 8.6 |
| M12 | M12x1.5 | M12x1.25 | – | 1.75 | 12 | 13 | 17.2 | 21.1 | 7 | 6.64 | 5.3 | 19 | 18.67 | 12.1 |
| M14 | M14x1.5 | – | – | 2 | 14 | 15.1 | 20.2 | 24.49 | 8 | 7.42 | 5.9 | 22 | 21.67 | 18.2 |
| M16 | M16x1.5 | – | – | 2 | 16 | 17.3 | 22.2 | 26.75 | 8 | 7.42 | 5.9 | 24 | 23.67 | 20.1 |
| M18 | M18x1.5 | M18x2 | – | 2.5 | 18 | 19.5 | 25.3 | 29.56 | 9 | 8.42 | 6.7 | 27 | 26.16 | 29.6 |
| M20 | M20x2 | M20x1.5 | – | 2.5 | 20 | 21.6 | 28.2 | 32.95 | 9 | 8.1 | 6.5 | 30 | 29.16 | 36.3 |
| M22 | M22x1.5 | M22x2 | – | 2.5 | 22 | 23.7 | 29.5 | 35.03 | 10 | 9.1 | 7.3 | 32 | 31 | 43.8 |
| M24 | M24x2 | M24x1.5 | – | 3 | 24 | 25.9 | 33.2 | 39.55 | 10 | 9.1 | 7.3 | 36 | 35 | 58 |
| M27 | M27x2 | – | M27x1.5 | 3 | 27 | 29.2 | 38 | 45.2 | 12 | 10.9 | 8.7 | 41 | 40 | 90 |
| M30 | M30x2 | – | M30x1.5 | 3.5 | 30 | 32.4 | 42.7 | 50.85 | 12 | 10.9 | 8.7 | 46 | 45 | 110 |
| M33 | M33x1.5 | M33x2 | – | 3.5 | 33 | 35.6 | 46.6 | 55.37 | 14 | 12.9 | 10.3 | 50 | 49 | 155 |
| M36 | M36x3 | M36x2 | M36x1.5 | 4 | 36 | 38.9 | 51.1 | 60.79 | 14 | 12.9 | 10.3 | 55 | 53.8 | 190 |
| M39 | M39x3 | M39x2 | M39x1.5 | 4 | 39 | 42.1 | 55.9 | 66.44 | 16 | 14.9 | 11.9 | 60 | 58.8 | 260 |
| M42 | M42x3 | M42x2 | M42x1.5 | 4.5 | 42 | 45.4 | 60.6 | 71.3 | 16 | 14.9 | 11.9 | 65 | 63.1 | 307 |
| M45 | M45x3 | M45x2 | M45x1.5 | 4.5 | 45 | 48.6 | 64.7 | 76.95 | 18 | 16.9 | 13.5 | 70 | 68.1 | 400 |
| M48 | M48x3 | M48x2 | M48x1.5 | 5 | 48 | 51.8 | 69.4 | 82.6 | 18 | 16.9 | 13.5 | 75 | 73.1 | 460 |
| M52 | M52x3 | M52x2 | M52x1.5 | 5 | 52 | 56.2 | 74.2 | 88.25 | 20 | 18.7 | 15 | 80 | 78.1 | 580 |
