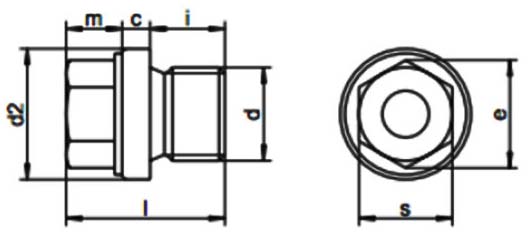

| d1 | d2 | l | s | e | m | c | i | n |
|---|---|---|---|---|---|---|---|---|
| G 1/8″ | 14 | 17 | 10 | 10.89 | 6 | 3 | 8 | 10 |
| G 1/4″ | 18 | 21 | 13 | 14.20 | 6 | 3 | 12 | 13 |
| G 3/8″ | 22 | 21 | 17 | 18.72 | 6 | 3 | 12 | 17 |
| G 1/2″ | 26 | 26 | 17 | 20.88 | 8 | 4 | 14 | 17 |
| G 3/4″ | 32 | 30 | 24 | 26.17 | 10 | 4 | 16 | 24 |
| G 1″ | 39 | 32 | 27 | 29.59 | 11 | 5 | 16 | 27 |
| G 1 1/8″ | 44 | 32 | 27 | 29.56 | 11 | 5 | 16 | 27 |
| G 1 1/4″ | 49 | 33 | 30 | 32.95 | 12 | 5 | 16 | 30 |
| G 1 1/2″ | 55 | 33 | 30 | 32.95 | 12 | 5 | 16 | 30 |
| G 1 3/4″ | 62 | 40 | 36 | 39.55 | 15 | 5 | 20 | 36 |
| G 2 | 68 | 40 | 36 | 39.55 | 15 | 5 | 20 | 36 |
