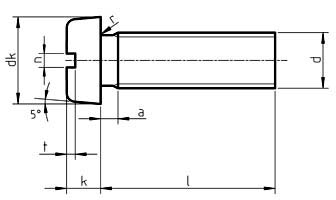

| d | k | dk | t | t max | n |
|---|---|---|---|---|---|
| M 1 | 0.7 | 2 | 0.25 | 0.3 | 0.25 |
| M 1.2 | 0.8 | 2.3 | 0.3 | 0.5 | 0.3 |
| M 1.4 | 0.9 | 2.6 | 0.4 | 0.6 | 0.3 |
| M 1.6 | 1 | 3 | 0.45 | 0.7 | 0.4 |
| M 1.7 | 1.1 | 3.2 | 0.55 | 0.9 | 0.4 |
| M 2 | 1.3 | 3.8 | 0.6 | 0.8 | 0.5 |
| M 2.3 | 1.5 | 4.4 | 0.7 | 0.9 | 0.6 |
| M 2.5 | 1.6 | 4.5 | 0.7 | 0.9 | 0.6 |
| M 2.6 | 1.7 | 5 | 0.8 | 1 | 0.6 |
| M 3 | 2 | 5.5 | 0.9 | 1.15 | 0.8 |
| M 3.5 | 2.4 | 6 | 1 | 1.2 | 1 |
| M 4 | 2.6 | 7 | 1.2 | 1.5 | 1 |
| M 5 | 3.3 | 8.5 | 1.5 | 1.8 | 1.2 |
| M 6 | 3.9 | 10 | 1.8 | 2.2 | 1.6 |
| M 8 | 5 | 13 | 2.1 | 2.6 | 2 |
| M 10 | 6 | 16 | 2.4 | 3 | 2.5 |
| M 12 | 6 | 22 | 2.4 | 3 | 3 |
