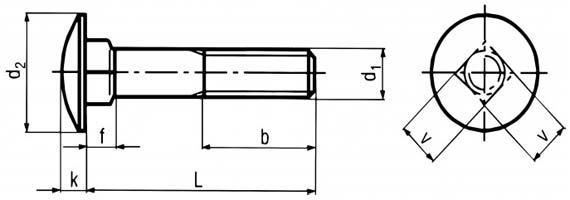

| Nominal Diameter d1 | Lead of thread p | d1 max | d1 min | d2 max | d2 min | k max | k min | f max | f min | v max | v min | e min | r max | ds max | ds min | b L < 125 | b L=125-200 | b L>200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M5 | 0.80 | 5 | 4.82 | 13.55 | 12.45 | 3.30 | 2.70 | 4.10 | 2.90 | 5.48 | 4.52 | 6.10 | 1.0 | 5 | 4.52 | 16 | ||
| M6 | 1.00 | 6 | 5.82 | 16.55 | 15.45 | 3.88 | 3.12 | 4.60 | 3.40 | 6.48 | 5.72 | 7.40 | 1.2 | 6 | 5.52 | 18 | ||
| M8 | 1.25 | 8 | 7.78 | 20.65 | 19.35 | 4.88 | 4.12 | 5.60 | 4.40 | 8.58 | 7.42 | 9.90 | 1.6 | 8 | 7.42 | 22 | 28 | |
| M10 | 1.50 | 10 | 9.78 | 24.65 | 23.35 | 5.38 | 4.62 | 6.60 | 5.40 | 10.58 | 9.42 | 12.50 | 1.6 | 10 | 9.42 | 26 | 32 | |
| M12 | 1.76 | 12 | 11.73 | 30.65 | 29.35 | 6.95 | 6.05 | 8.75 | 7.25 | 12.70 | 11.30 | 15.00 | 2.2 | 12 | 11.30 | 30 | 36 | 49 |
| M16 | 2.00 | 16 | 15.73 | 38.80 | 37.20 | 8.95 | 8.05 | 12.90 | 11.10 | 16.70 | 15.30 | 20.20 | 2.7 | 16 | 15.30 | 38 | 44 | 57 |
