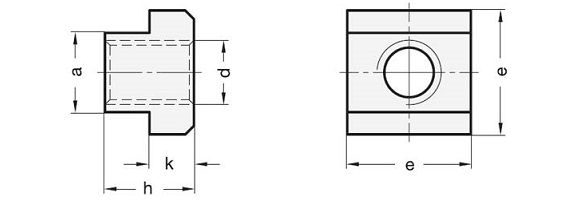

| d | a | e | h | k | T-Slot width DIN 650 |
|---|---|---|---|---|---|
| M 4 | 5 | 9 – 0.5 | 6.5 | 3 – 0.3 | 5 |
| M 5 | 6 | 10 – 0.5 | 8 | 4 – 0.5 | 6 |
| M 6 | 8 | 13 – 0.5 | 10 | 6 – 0.5 | 8 |
| M 6 | 10 | 15 – 0.5 | 12 | 6 – 0.5 | 10 |
| M 8 | 12 | 18 – 0.5 | 14 | 7 – 0.5 | 12 |
| M 10 | 14 | 22 – 0.5 | 16 | 8 – 0.5 | 14 |
| M 10 | 16 | 25 – 0.5 | 18 | 9 – 0.5 | 16 |
| M 12 | 18 | 28 – 0.5 | 20 | 10 – 0.5 | 18 |
| M 12 | 20 | 32 – 0.5 | 24 | 12 – 0.5 | 20 |
| M 16 | 22 | 35 – 0.5 | 28 | 14 – 0.5 | 22 |
| M 20 | 24 | 40 – 0.5 | 32 | 16 – 0.5 | 24 |
| M 20 | 28 | 44 – 1 | 36 | 18 – 1 | 28 |
