DIN 319

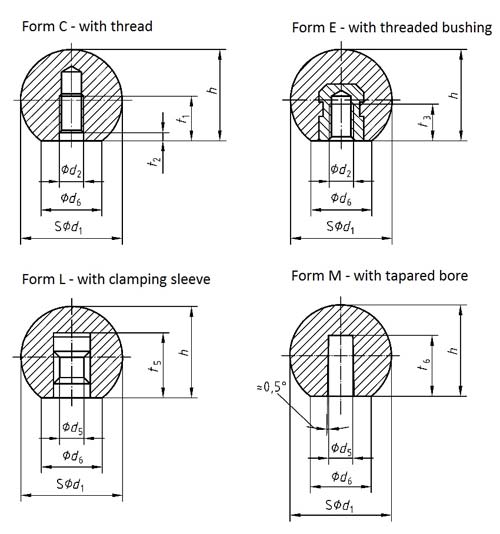

Dimensions for DIN 319 Ball knobs

d1 Form C Form E h
d2 t1 min t2 d2 t3 min d6
12 M4 6.5 1.2 – – 6 11.2
16 M4 7 1.2 M4 6 8 15
20 M5 9 1.6 M5 7.5 12 18
25 M6 11 2 M6 9 15 22.5
32 M8 14.5 2.5 M8 12 18 29
40 M10 18 3 M10 15 22 37
50 M12 21 3 M12 18 28 46
d1 Form L Form M d6 h Fmin a in N
d5 t5 d5 t6
16 4 11 4 9 8 15 100
20 5 13 5 12 12 18 150
25 6 16 6 15 15 22.5 200
25 8 15 8 15 15 22.5 300
25 10 15 – – 15 22.5 400
32 8 15 8 15 18 29 300
32 10 20 10 15 18 29 400
32 12 20 – – 18 29 500
40 10 20 10 20 22 37 400
40 12 23 12 20 22 37 500
40 16 23 – – 22 37 800
50 12 20 12 22 28 46 500
50 16 23 16 22 28 46 800
50 20 28 – – 28 46 1500
