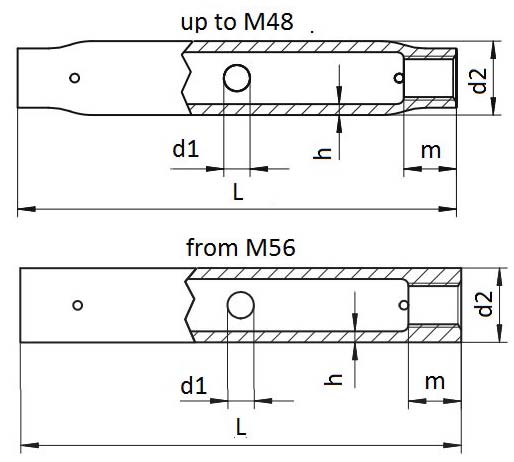

| Thread | L | m | d2 | d1 min | d1 max | h |
|---|---|---|---|---|---|---|
| M6 | 110 | 7.5 | 17.2 | 5.7 | 6.3 | 2.9 |
| M8 | 110 | 10 | 17.2 | 7.5 | 8.5 | 3.6 |
| M10 | 125 | 12 | 21.3 | 7.5 | 8.5 | 4 |
| M12 | 125 | 15 | 25 | 9.5 | 10.5 | 4 |
| M16 | 170 | 20 | 30 | 9.5 | 10.5 | 4.5 |
| M20 | 200 | 24 | 33.7 | 11.5 | 12.5 | 5 |
| M24 | 255 | 29 | 42.4 | 11.5 | 12.5 | 5.6 |
| M27 | 255 | 40 | 42.4 | 11.5 | 12.5 | 5.6 |
| M30 | 255 | 36 | 51 | 15.5 | 16.5 | 6.3 |
| M36 | 295 | 43 | 63.5 | 15.5 | 16.5 | 8 |
| M42 | 330 | 51 | 70 | 19.5 | 20.5 | 8.8 |
| M48 | 355 | 58 | 82.5 | 19.5 | 20.5 | 10 |
| M52 | 355 | 58 | 82.5 | 24.5 | 20.5 | 10 |
| M56 | 355 | 68 | 90 | 24.5 | 25.5 | 15 |
| M64 | 425 | 77 | 100 | 24.5 | 25.5 | 16 |
| M72x6 | 425 | 87 | 110 | 29.5 | 30.5 | 17 |
| M80x6 | 440 | 96 | 120 | 29.5 | 30.5 | 18 |
