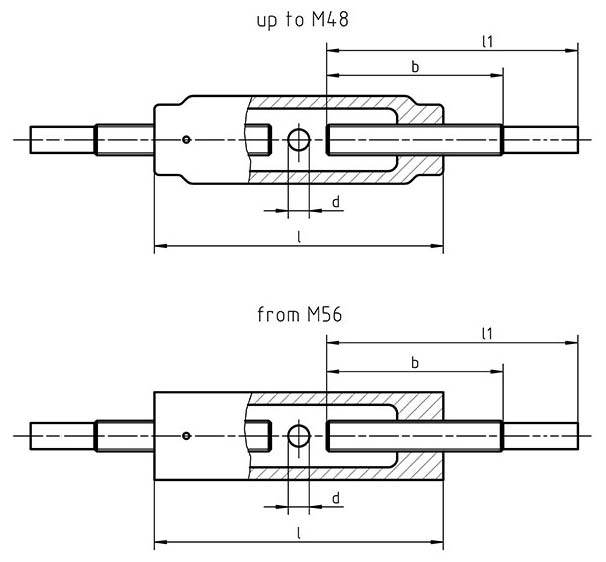

| Thread | L | L1 | b | d1 min | d1 max |
|---|---|---|---|---|---|
| M6 | 110 | 120 | 60 | 5.7 | 6.3 |
| M8 | 110 | 120 | 65 | 7.5 | 8.5 |
| M10 | 125 | 150 | 75 | 7.5 | 8.5 |
| M12 | 125 | 150 | 75 | 9.5 | 10.5 |
| M16 | 170 | 200 | 100 | 9.5 | 10.5 |
| M20 | 200 | 220 | 120 | 11.5 | 12.5 |
| M24 | 255 | 260 | 150 | 11.5 | 12.5 |
| M27 | 255 | 260 | 160 | 11.5 | 12.5 |
| M30 | 255 | 260 | 160 | 15.5 | 16.5 |
| M36 | 295 | 300 | 180 | 15.5 | 16.5 |
| M42 | 330 | 350 | 200 | 19.5 | 20.5 |
| M48 | 355 | 380 | 220 | 19.5 | 20.5 |
| M56 | 355 | 380 | 230 | 24.5 | 25.5 |
| M64 | 425 | 425 | 300 | 24.5 | 25.5 |
| M72 | 425 | 400 | 270 | 29.5 | 30.5 |
| M80 | 440 | 400 | 270 | 29.5 | 30.5 |
