CSN 22162

CSN 22162

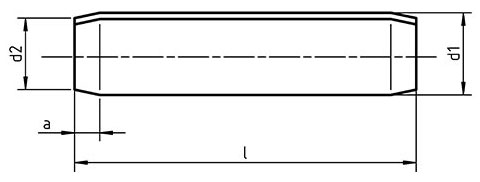

Dimensions for CSN 22162 - Spiral-span pins, rule execution

d1
before mounting		 d2
before mounting		 a s Min. Shear
strength, double, kN
nominal max. min. max approx a b
0.8 0.91 0.85 0.75 0.3 0.07 0.4 0.3
1 1.15 1.05 0.95 0.3 0.08 0.6 0.45
1.2 1.35 1.25 1.15 0.4 0.1 0.9 0.65
1.5 1.73 1.62 1.4 0.5 0.13 1.45 1.05
2 2.25 2.13 1.9 0.7 0.17 2.5 1.9
2.5 2.78 2.65 2.4 0.7 0.21 3.9 2.9
3 3.3 3.15 2.9 0.9 0.25 5.5 4.2
3.5 3.84 3.67 3.4 1 0.29 7.5 5.7
4 4.4 4.2 3.9 1.1 0.33 9.6 7.6
5 5.5 5.25 4.85 1.3 0.42 15 11.5
6 6.5 6.25 5.85 1.5 0.5 22 16.8
8 8.63 8.3 7.8 2 0.67 39 30
10 10.8 10.35 9.75 2.5 0.84 62 48
12 12.85 12.34 11.7 3 1 89 67
14 14.95 14.45 13.6 3.5 1.2 120 –
16 17 16.45 15.6 4 1.3 155 –
20 21.1 20.4 19.6 4.5 1.7 250 –
Thread d p c da dw e m mw s
non-preferred threads max min max min min min max min min nominal = max min
M3.5 0.6 0.40 0.15 4.00 3.50 5.00 6.58 2.80 2.55 2.00 6.00 5.82
M14 2 0.60 0.15 15.10 14.00 19.60 23.36 12.80 12.10 9.70 21.00 20.67
M18 2.5 0.80 0.20 19.50 18.00 24.90 29.56 15.80 15.10 12.10 27.00 26.16
M22 2.5 0.80 0.20 23.70 22.00 31.40 37.29 19.40 18.10 14.50 34.00 33.00
M27 3 0.80 0.20 29.10 27.00 38.00 45.20 23.80 22.50 18.00 41.00 40.00
M33 3.5 0.80 0.20 35.60 33.00 46.60 55.37 28.70 27.40 21.90 50.00 49.00
M39 4 1.00 0.30 42.10 39.00 55.90 66.44 33.40 31.80 25.40 60.00 58.80
M45 4.5 1.00 0.30 48.60 45.00 64.70 76.95 36.00 34.40 27.50 70.00 68.10
M52 5 1.00 0.30 56.20 52.00 74.20 88.25 42.00 40.40 32.30 80.00 78.10
M60 5.5 1.00 0.30 64.80 60.00 83.40 99.21 48.00 46.40 37.10 90.00 87.80
