CSN 21915

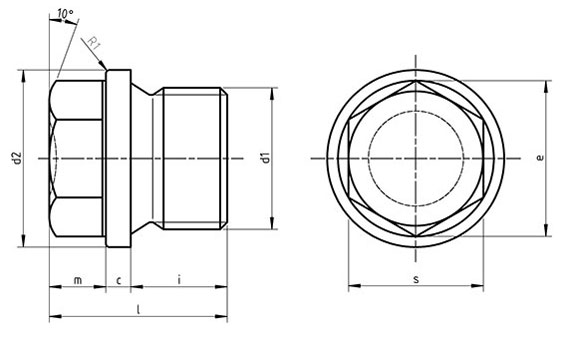

Dimensions for CSN 21915 - Screw plugs with collar and outer hexagon, cylindrical thread

d1			c	d2	e	i	l	s	t	w	Weight (7.85 kg/dm3) kg/1000 pieces
Metric Fine Thread		Pipe Thread	+0.5	h14	min.	a0.2	approx.	D12	min	min	Weight (7.85 kg/dm3) kg/1000 pieces
M10x1	–	G1/8 A	3	14	5.7	8	11	5	5	3	6.34
M12x1.5	–	–	3	17	6.9	12	15	6	7	3	11.3
–	–	G1/4 A	3	18	6.9	12	15	6	7	3	14.6
M14x1.5	–	–	3	19	6.9	12	15	6	7	3	16
M16x1.5	–	–	3	21	9.2	12	15	8	7.5	3	19
–	–	G3/8 A	3	22	9.2	12	15	8	7.5	3	21.4
M18x1.5	–	–	4	23	9.2	12	16	8	7.5	3	28.3
M20x1.5	–	–	4	25	11.4	14	18	10	7.5	4	37.5
–	–	G1/2 A	4	26	11.4	1	18	10	7.5	4	40.8
M22x1.5	–	–	4	27	11.4	14	18	10	7.5	4	47.5
M24x1.5	–	–	4	29	13.7	14	18	12	7.5	4	53.5
M26x1.5	–	–	4	31	13.7	16	20	12	9	4	68.7
–	M27x2	G 3/4 A	4	32	13.7	16	20	12	9	4	73.5
M30x1.5	M30x2	–	4	36	19.4	16	20	17	9	4	84
–	M33x2	G1 A	5	39	19.4	16	21	17	9	4	111
M36x1.5	M36x2	–	5	42	21.7	16	21	19	10.5	4	134
M38x1.5	–	G 11/8 A	5	44	21.7	16	21	19	10.5	4	149
–	M39x2	–	5	46	21.7	16	21	19	10.5	4	163
M42x1.5	M42x2	G1 1/4A	5	49	25.2	16	21	22	10.5	4	187
M45x1.5	M45x2	–	5	52	25.2	16	21	22	10.5	4	215
M48x2	M48x2	G1 1/2A	5	55	27.4	16	21	24	10.5	4	246
M52x1.5	M52x2	–	5	60	27.4	16	21	24	10.5	4	302
–	–	G1 3/4 A	5	62	36.6	20	25	32	14	4	320
–	M56x2	–	5	64	36.6	20	25	32	14	4	386
–	M60x2	G 2A	5	68	36.6	20	25	32	14	4	445
–	M64x2	–	5	72	36.6	20	25	32	14	4	530

Thread d	p	c		da		dw	e	m		mw	s
non-preferred threads	p	max	min	max	min	min	min	max	min	min	nominal = max	min
M3.5	0.6	0.40	0.15	4.00	3.50	5.00	6.58	2.80	2.55	2.00	6.00	5.82
M14	2	0.60	0.15	15.10	14.00	19.60	23.36	12.80	12.10	9.70	21.00	20.67
M18	2.5	0.80	0.20	19.50	18.00	24.90	29.56	15.80	15.10	12.10	27.00	26.16
M22	2.5	0.80	0.20	23.70	22.00	31.40	37.29	19.40	18.10	14.50	34.00	33.00
M27	3	0.80	0.20	29.10	27.00	38.00	45.20	23.80	22.50	18.00	41.00	40.00
M33	3.5	0.80	0.20	35.60	33.00	46.60	55.37	28.70	27.40	21.90	50.00	49.00
M39	4	1.00	0.30	42.10	39.00	55.90	66.44	33.40	31.80	25.40	60.00	58.80
M45	4.5	1.00	0.30	48.60	45.00	64.70	76.95	36.00	34.40	27.50	70.00	68.10
M52	5	1.00	0.30	56.20	52.00	74.20	88.25	42.00	40.40	32.30	80.00	78.10
M60	5.5	1.00	0.30	64.80	60.00	83.40	99.21	48.00	46.40	37.10	90.00	87.80
