CSN 21733

CSN 21733

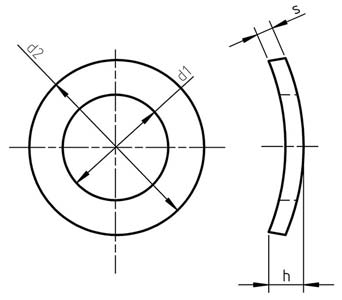

Dimensions for CSN 21733 - Spring washers curved. Form A

Nominal Size d1 d2 s h kg/1000pcs For Size
H14 js16 Nominal Size tol. min. max.
3 3.2 8 0.5 ± 0.05 0.8 1.6 0.166 M3
3.5 3.7 8 0.5 ± 0.05 0.9 1.8 0.154 M3.5
4 4.3 9 0.5 ± 0.05 1 2 0.193 M4
5 5.3 11 0.5 ± 0.05 1.1 2.2 0.286 M5
6 6.4 12 0.5 ± 0.05 1.3 2.6 0.318 M6
7 7.4 14 0.8 ± 0.06 1.5 3 0.7 M7
8 8.4 15 0.8 ± 0.06 1.5 3 0.762 M8
10 10.5 21 1 ± 0.07 2.1 4.2 2.04 M10
12 13 24 1.2 ± 0.07 2.5 5 3.01 M12
14 15 28 1.6 ± 0.08 3 6 5.51 M14
16 17 30 1.6 ± 0.08 3.2 6.4 6.03 M16
18 19 34 1.6 ± 0.08 3.3 6.6 7.84 M18
20 21 36 1.6 ± 0.08 3.7 7.4 8.43 M20
22 23 40 1.8 ± 0.1 3.9 7.8 11.9 M22
24 25 44 1.8 ± 0.1 4.1 8.2 14.5 M24
27 28 50 2 ± 0.1 4.7 9.4 21.1 M27
30 31 56 2.2 ± 0.1 5 10 29.5 M30
33 34 60 2.2 ± 0.1 5.3 10.6 33.1 M33
36 37 68 2.5 ± 0.15 5.8 11.6 50.2 M36
Thread d p c da dw e m mw s
non-preferred threads max min max min min min max min min nominal = max min
M3.5 0.6 0.40 0.15 4.00 3.50 5.00 6.58 2.80 2.55 2.00 6.00 5.82
M14 2 0.60 0.15 15.10 14.00 19.60 23.36 12.80 12.10 9.70 21.00 20.67
M18 2.5 0.80 0.20 19.50 18.00 24.90 29.56 15.80 15.10 12.10 27.00 26.16
M22 2.5 0.80 0.20 23.70 22.00 31.40 37.29 19.40 18.10 14.50 34.00 33.00
M27 3 0.80 0.20 29.10 27.00 38.00 45.20 23.80 22.50 18.00 41.00 40.00
M33 3.5 0.80 0.20 35.60 33.00 46.60 55.37 28.70 27.40 21.90 50.00 49.00
M39 4 1.00 0.30 42.10 39.00 55.90 66.44 33.40 31.80 25.40 60.00 58.80
M45 4.5 1.00 0.30 48.60 45.00 64.70 76.95 36.00 34.40 27.50 70.00 68.10
M52 5 1.00 0.30 56.20 52.00 74.20 88.25 42.00 40.40 32.30 80.00 78.10
M60 5.5 1.00 0.30 64.80 60.00 83.40 99.21 48.00 46.40 37.10 90.00 87.80
