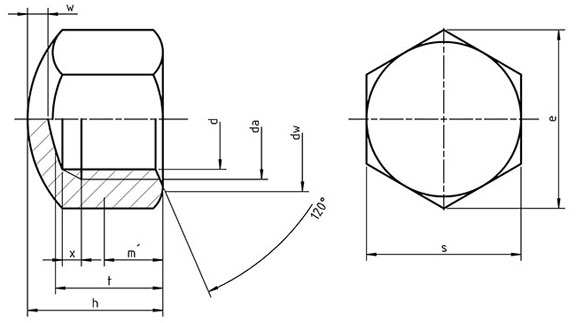

| Thread d | p | da | dw | e | x2 | g | h | m | r | s | t | w | Weight (7,85kg/dm3) for 1000 umits, in kg. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Series 1 | Series 2 | Series 3 | min. | max. | min. | min. | max. Series 1 | max.Series 2 | max. Series 3 | max. Series 1 | max. Series 2 | max. Series 3 | nominal = max. | min. | min. | approx. | nominal = max. | min. | min. | max. | min. | ||
| M 4 | – | – | 0.7 | 4 | 4.6 | 5.8 | 7.66 | 1.05 | – | – | – | – | – | 5.5 | 5.2 | 2.75 | 8 | 7 | 6.78 | 4.16 | 4.64 | 1 | 1.31 |
| M 5 | – | – | 0.8 | 5 | 5.75 | 6.8 | 8.79 | 1.2 | – | – | – | – | – | 7 | 6.64 | 3.5 | 10 | 8 | 7.78 | 4.96 | 5.44 | 1 | 2.2 |
| M 6 | – | – | 1 | 6 | 6.75 | 8.8 | 11.05 | 1.5 | – | – | – | – | – | 9 | 8.64 | 4.5 | 12 | 10 | 9.78 | 6.71 | 7.29 | 1.5 | 4.29 |
| M 8 | M 8×1 | – | 1.25 | 8 | 8.75 | 11.3 | 14.38 | 1.87 | 1.5 | – | – | – | – | 12 | 11.57 | 6 | 15 | 13 | 12.73 | 9.21 | 9.79 | 2 | 9.5 |
| M 10 | M 10×1 | M 10×1.25 | 1.5 | 10 | 10.8 | 14.6 | 17.77 | 2.25 | 1.5 | 1.87 | – | – | – | 14 | 13.57 | 7 | 20 | 16 | 15.73 | 10.65 | 11.35 | 2 | – |
| M 12 | M 12×1.5 | M 12×1.25 | 1.75 | 13 | 13 | 16.6 | 20.03 | – | – | – | 6.4 | 5.6 | 4.9 | 16 | 15.57 | 8 | 25 | 18 | 17.73 | 13.15 | 13.85 | 2 | |
| M 14 | M 14×1.5 | – | 2 | 15.1 | 15.1 | 19.6 | 23.35 | – | – | – | 7.3 | 5.6 | – | 18 | 17.57 | 9 | 28 | 21 | 20.67 | 14.65 | 15.35 | 2 | – |
| M 16 | M 16×1.5 | – | 2 | 17.3 | 17.3 | 22.2 | 26.75 | – | – | – | 7.3 | 5.6 | – | 20 | 19.48 | 10 | 30 | 24 | 23.67 | 16.65 | 17.35 | 2 | 48.1 |
| M 18 | M 18×1.5 | M 18×2 | 2.5 | 19.5 | 19.5 | 25.3 | 29.56 | – | – | – | 9.3 | 5.6 | 7.3 | 22 | 21.48 | 11 | 32 | 27 | 26.16 | 18.58 | 19.42 | 2 | 70 |
| M 20 | M 20×2 | M 20×1.5 | 2.5 | 21.6 | 21.6 | 28.2 | 32.95 | – | – | – | 9.3 | 7.3 | 5.6 | 25 | 24.48 | 12.5 | 35 | 30 | 29.16 | 20.58 | 21.42 | 2.5 | 94.1 |
| Thread d | p | c | da | dw | e | m | mw | s | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| non-preferred threads | max | min | max | min | min | min | max | min | min | nominal = max | min | |
| M3.5 | 0.6 | 0.40 | 0.15 | 4.00 | 3.50 | 5.00 | 6.58 | 2.80 | 2.55 | 2.00 | 6.00 | 5.82 |
| M14 | 2 | 0.60 | 0.15 | 15.10 | 14.00 | 19.60 | 23.36 | 12.80 | 12.10 | 9.70 | 21.00 | 20.67 |
| M18 | 2.5 | 0.80 | 0.20 | 19.50 | 18.00 | 24.90 | 29.56 | 15.80 | 15.10 | 12.10 | 27.00 | 26.16 |
| M22 | 2.5 | 0.80 | 0.20 | 23.70 | 22.00 | 31.40 | 37.29 | 19.40 | 18.10 | 14.50 | 34.00 | 33.00 |
| M27 | 3 | 0.80 | 0.20 | 29.10 | 27.00 | 38.00 | 45.20 | 23.80 | 22.50 | 18.00 | 41.00 | 40.00 |
| M33 | 3.5 | 0.80 | 0.20 | 35.60 | 33.00 | 46.60 | 55.37 | 28.70 | 27.40 | 21.90 | 50.00 | 49.00 |
| M39 | 4 | 1.00 | 0.30 | 42.10 | 39.00 | 55.90 | 66.44 | 33.40 | 31.80 | 25.40 | 60.00 | 58.80 |
| M45 | 4.5 | 1.00 | 0.30 | 48.60 | 45.00 | 64.70 | 76.95 | 36.00 | 34.40 | 27.50 | 70.00 | 68.10 |
| M52 | 5 | 1.00 | 0.30 | 56.20 | 52.00 | 74.20 | 88.25 | 42.00 | 40.40 | 32.30 | 80.00 | 78.10 |
| M60 | 5.5 | 1.00 | 0.30 | 64.80 | 60.00 | 83.40 | 99.21 | 48.00 | 46.40 | 37.10 | 90.00 | 87.80 |
