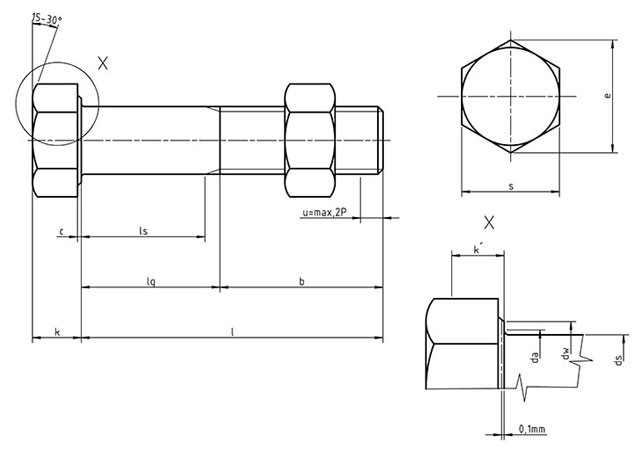

| Thread d | p | b | c | da | ds | dw | e | k | k | r | s | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| max | max | nominal | min | max | min | min | nominal | min | max | min | min | nominal=max | min | |||
| M12 | 1.75 | 17.75 | 0.6 | 14.7 | 12 | 11.3 | 12.7 | 17.2 | 20.88 | 8 | 7.55 | 8.45 | 5.28 | 0.6 | 19 | 18.48 |
| M16 | 2 | 21 | 0.8 | 18.7 | 16 | 15.3 | 16.7 | 22 | 26.17 | 10 | 9.25 | 10.75 | 6.47 | 0.6 | 24 | 23.16 |
| M20 | 2.5 | 23.5 | 0.8 | 24.4 | 20 | 19.16 | 20.84 | 27.7 | 32.95 | 13 | 12.1 | 13.9 | 8.47 | 0.8 | 30 | 29.16 |
| M22 | 2.5 | 25.5 | 0.8 | 26.4 | 22 | 21.16 | 22.84 | 29.5 | 35.03 | 14 | 13.1 | 14.9 | 9.17 | 0.8 | 32 | 31 |
| M24 | 3 | 26 | 0.8 | 28.4 | 24 | 23.16 | 24.84 | 33.2 | 39.55 | 15 | 14.1 | 18.9 | 9.87 | 0.8 | 36 | 35 |
| M27 | 3 | 29 | 0.8 | 32.4 | 27 | 26.16 | 27.84 | 0.8 | 45.2 | 17 | 16.1 | 17.9 | 11.27 | 1 | 41 | 40 |
| M30 | 3.5 | 30.5 | 0.8 | 35.4 | 30 | 29.16 | 27.84 | 42.7 | 50.85 | 19 | 17.95 | 20.05 | 12.56 | 1 | 46 | 45 |
