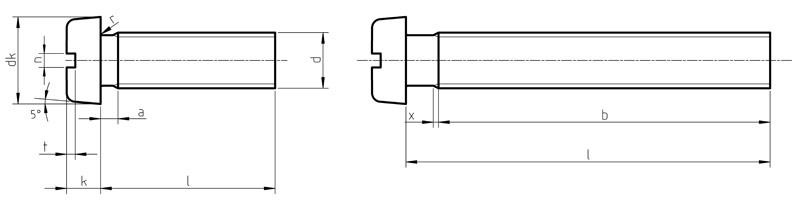

| Thread d | p | a | b | da | dk | k | n | r | t | w | x | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| nominal | min | nominal | |||||||||||||
| max | min | max | =max. | 2,86 | =max. | min | nominal | max | min | min | min | min | max | ||
| M1.6 | 0.35 | 0.7 | 25 | 2.0 | 3.00 | 3.62 | 1.10 | 0.96 | 0.4 | 0.60 | 0.46 | 0.10 | 0.45 | 0.40 | 0.90 |
| M2 | 0.4 | 0.8 | 25 | 2.6 | 3.80 | 4.32 | 1.40 | 1.26 | 0.5 | 0.70 | 0.56 | 0.10 | 0.60 | 0.50 | 1.00 |
| M2.5 | 0.45 | 0.9 | 25 | 3.1 | 4.50 | 5.32 | 1.80 | 1.66 | 0.6 | 0.80 | 0.66 | 0.10 | 0.70 | 0.70 | 1.10 |
| M3 | 0.5 | 1.0 | 25 | 36 | 5.50 | 5.82 | 2.00 | 1.86 | 0.8 | 1.00 | 0.86 | 0.10 | 0.85 | 0.75 | 1.25 |
| (M3.5) | 0.6 | 1.2 | 38 | 4.1 | 6.00 | 6.78 | 2.40 | 2.26 | 1 | 1.20 | 1.06 | 0.10 | 1.00 | 1.00 | 1.50 |
| M4 | 0.7 | 1.4 | 38 | 4.7 | 7.00 | 8.28 | 2.60 | 2.46 | 1,2 | 1.51 | 1.26 | 0.20 | 1.10 | 1.10 | 1.75 |
| M5 | 0.8 | 1.6 | 38 | 5.7 | 8.50 | 9.78 | 3.30 | 3.12 | 1,2 | 1.51 | 1.26 | 0.20 | 1.30 | 1.30 | 2.00 |
| M6 | 1 | 2.0 | 38 | 6.8 | 10.00 | 12.73 | 3.9 | 3.6 | 1,6 | 1.91 | 1.66 | 0.25 | 1.60 | 1.60 | 2.50 |
| M8 | 1.25 | 2.5 | 38 | 9.2 | 13.00 | 15.73 | 5.0 | 4.7 | 2 | 2.31 | 2.06 | 0.40 | 2.00 | 2.00 | 3.20 |
| M10 | 1.5 | 3.0 | 38 | 11.2 | 16.00 | 6.0 | 5.7 | 2.5 | 2.81 | 2.56 | 0.40 | 2.40 | 2.40 | 3.80 | |
