ASME B18.6.3 Square and Hex Machine Screw Nuts

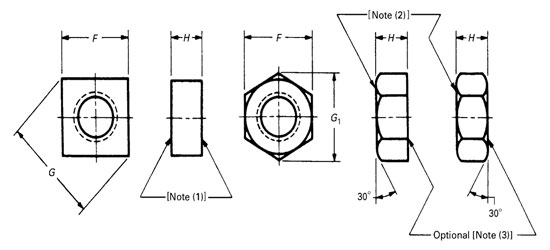

ASME B18.6.3 Square and Hex Machine Screw Nuts

Dimensions of ASME B18.6.3 Square and Hex Machine Screw Nuts

Nominal Size or Basic Screw DiameterWidth Across Flats, FWidth Across CornersThickness, H
Square, GHex, G1
BasicMaxMinMaxMinMaxMinMaxMin
05/320.1560.1500.2210.2060.1800.1710.0500.043
15/320.1560.1500.2210.2060.1800.1710.0500.043
23/160.1880.1800.2650.2470.2170.2050.0660.057
33/160.1880.1800.2650.2470.2170.2050.0660.057
41/40.2500.2410.3540.3310.2890.2750.0980.087
55/160.3120.3020.4420.4150.3610.3440.1140.102
65/160.3120.3020.4420.4150.3610.3440.1140.102
811/320.3440.3320.4860.4560.3970.3780.1300.117
103/80.3750.3620.5300.4970.4330.4130.1300.117
127/160.4380.4230.6190.5810.5050.4820.1610.148
1/47/160.4380.4230.6190.5810.5050.4820.1930.178
5/169/160.5620.5450.7950.7480.6500.6210.2250.208
3/85/80.6250.6070.8840.8330.7220.6920.2570.239

Notes :

  • Square macine screw nuts shall have tops and bottoms flat, and un-chamfered. The flat surfaces shall be perpendicular to the axis of the threaded hole pitch cylinder within a tolerance of 4 deg.
  • Hexagon machine screw nuts shall have top and bottom surfaces flat, with chamfered corners. the flat surfaces diameter shall ne equal to the maximum width acroos flats, with a tolerance of minus 15%. The bearing surface shall be perpendicular to the axis of the threaded hole pitch cylinder within a tolerance of 4 deg.
  • Bottoms of hexagon machine screw nuts may be supplied with flat, but un-chamfered surfaces at the options of the manufacturers.
  • Where specifying nominal size in decimals, zeros preceding the decimal and in the fourth decimal place shall be omitted.
