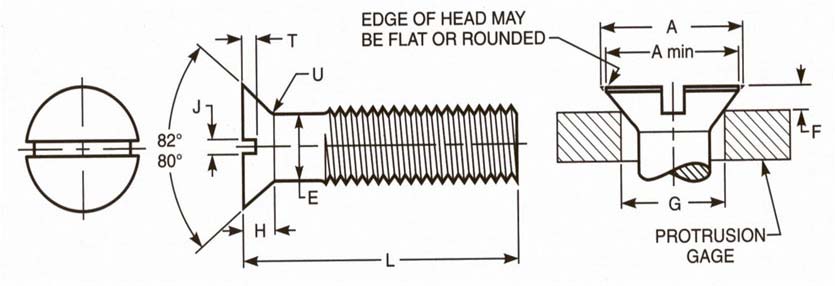

| Nominal Size | Body Diameter, E | Head Diameter, A | Head Height, H | Slot Width, J | Slot Depth, T | Fillet Radius, U | Protrusion Above Gaging Dia, F | Gaging Diameter, G | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max, Edge Sharp | Min, Edge Rounded | Ref. | Max | Min | Max | Min | Max | Max | Min | ||
| 1/4 | 0.2500 | 0.2450 | 0.500 | 0.452 | 0.140 | 0.075 | 0.064 | 0.068 | 0.045 | 0.100 | 0.046 | 0.030 | 0.420 |
| 5/16 | 0.3125 | 0.3070 | 0.625 | 0.567 | 0.177 | 0.084 | 0.072 | 0.086 | 0.057 | 0.125 | 0.053 | 0.035 | 0.538 |
| 3/8 | 0.3750 | 0.3690 | 0.750 | 0.682 | 0.210 | 0.094 | 0.081 | 0.103 | 0.068 | 0.150 | 0.060 | 0.040 | 0.651 |
| 7/16 | 0.4375 | 0.4310 | 0.812 | 0.736 | 0.210 | 0.094 | 0.081 | 0.103 | 0.068 | 0.175 | 0.065 | 0.044 | 0.703 |
| 1/2 | 0.5000 | 0.4930 | 0.875 | 0.791 | 0.210 | 0.106 | 0.091 | 0.103 | 0.068 | 0.200 | 0.071 | 0.049 | 0.756 |
| 9/16 | 0.5625 | 0.5550 | 1.000 | 0.906 | 0.244 | 0.118 | 0.102 | 0.120 | 0.080 | 0.225 | 0.078 | 0.054 | 0.869 |
| 5/8 | 0.6250 | 0.6170 | 1.125 | 1.020 | 0.281 | 0.133 | 0.116 | 0.137 | 0.091 | 0.250 | 0.085 | 0.058 | 0.982 |
| 3/4 | 0.7500 | 0.7420 | 1.375 | 1.251 | 0.352 | 0.149 | 0.131 | 0.171 | 0.115 | 0.300 | 0.099 | 0.068 | 1.208 |
| 7/8 | 0.8750 | 0.8660 | 1.625 | 1.480 | 0.423 | 0.167 | 0.147 | 0.206 | 0.138 | 0.350 | 0.113 | 0.077 | 1.435 |
| 1 | 1.0000 | 0.9900 | 1.875 | 1.711 | 0.494 | 0.188 | 0.166 | 0.240 | 0.162 | 0.400 | 0.127 | 0.087 | 1.661 |
| 1 1/8 | 1.1250 | 1.1140 | 2.062 | 1.880 | 0.529 | 0.196 | 0.178 | 0.257 | 0.173 | 0.450 | 0.141 | 0.096 | 1.826 |
| 1 1/4 | 1.2500 | 1.2390 | 2.312 | 2.110 | 0.600 | 0.211 | 0.193 | 0.291 | 0.197 | 0.500 | 0.155 | 0.105 | 2.052 |
| 1 3/8 | 1.3750 | 1.3630 | 2.562 | 2.340 | 0.665 | 0.226 | 0.208 | 0.326 | 0.220 | 0.550 | 0.169 | 0.115 | 2.279 |
| 1 1/2 | 1.5000 | 1.4880 | 2.812 | 2.570 | 0.742 | 0.258 | 0.240 | 0.360 | 0.244 | 0.600 | 0.183 | 0.124 | 2.505 |
