ASME B18.5 Round Head Square Neck

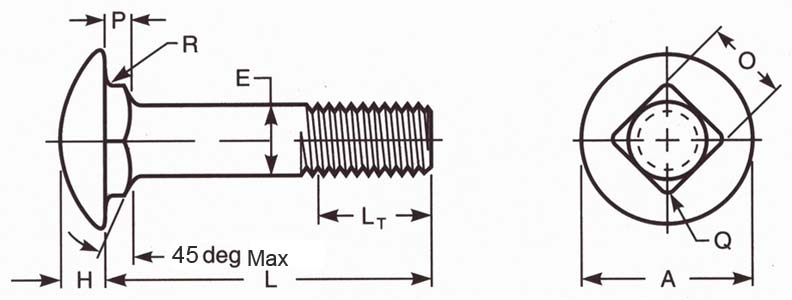

Dimensions of ASME B18.5 Round Head Square Neck Bolts

Nominal Size or Basic Bolt Diameter		Body Diameter, E		Head Diameter, A		Head Height, H		Square Width, O		Square Depth, P		Corner Radius on Square, Q	Fillet Radius, R
Nominal Size or Basic Bolt Diameter		Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Max²
No. 10	0.1900	0.199	0.182	0.469	0.436	0.114	0.094	0.199	0.185	0.125	0.094	0.031	0.031
1/4	0.2500	0.260	0.237	0.594	0.563	0.145	0.125	0.260	0.245	0.156	0.125	0.031	0.031
5/16	0.3125	0.324	0.298	0.719	0.688	0.176	0.156	0.324	0.307	0.187	0.156	0.031	0.031
3/8	0.3750	0.388	0.360	0.844	0.782	0.208	0.188	0.388	0.368	0.219	0.188	0.047	0.031
7/16	0.4375	0.452	0.421	0.969	0.907	0.239	0.219	0.452	0.431	0.250	0.219	0.047	0.031
1/2	0.5000	0.515	0.483	1.094	1.032	0.270	0.250	0.515	0.492	0.281	0.250	0.047	0.031
5/8	0.6250	0.642	0.605	1.344	1.219	0.344	0.313	0.642	0.616	0.344	0.313	0.078	0.062
3/4	0.7500	0.768	0.729	1.594	1.469	0.406	0.375	0.768	0.741	0.406	0.375	0.078	0.062
7/8	0.8750	0.895	0.852	1.844	1.719	0.459	0.438	0.895	0.865	0.469	0.438	0.094	0.062
1	1.0000	1.022	0.976	2.094	1.969	0.531	0.500	1.022	0.990	0.531	0.500	0.094	0.062

Notes :

Where specifying nominal size in decimals, zeros preceding decimal and in the fourth decimal place shall be omitted.
The minimum radius is one half of the value shown.
