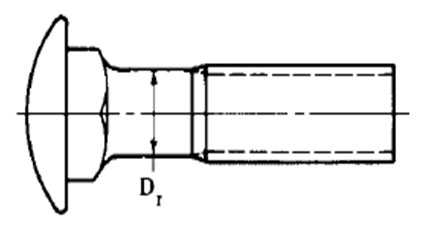

| Nominal Bolt Diameter, D, and Thread Pitch | Diameter of Reduced Body Dr | |
|---|---|---|
| Max | Min | |
| M5 x 0.8 | 5.00 | 4.36 |
| M6 x 1 | 6.00 | 5.21 |
| M8 x 1.25 | 8.00 | 7.04 |
| M10 x 1.5 | 10.00 | 8.86 |
| M12 x 1.75 | 12.00 | 10.68 |
| M14 x 2 | 14.00 | 12.50 |
| M16 x 2 | 16.00 | 14.50 |
| M20 x 2.5 | 20.00 | 18.16 |
| M24 x 3 | 24.00 | 21.80 |
All dimensions are in millimeters.
